M20-7833646

M20-7833646

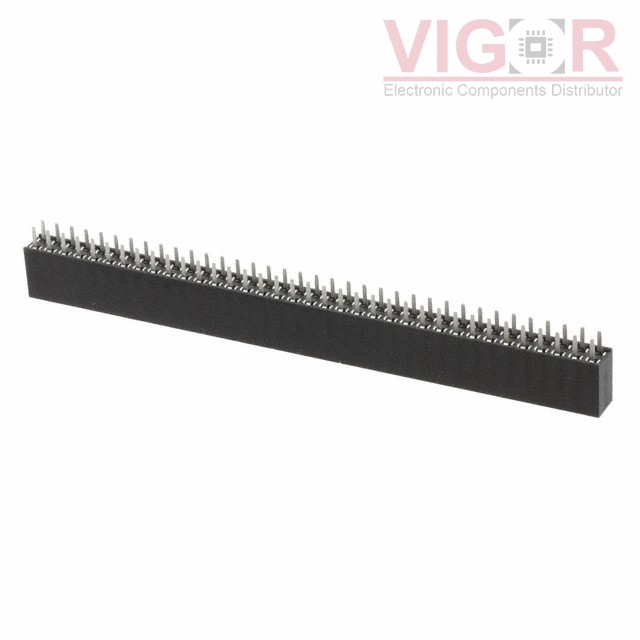

Image is for reference,
please contact us to get the real picture

Part No :

M20-7833646

Manufacturer
Harwin
Description
CONN RCPT 72POS 0.1 TIN PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
M20-7833646 PDF
Availability
0 pieces
Unit Price
$2.97700

Current price of M20-7833646 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M20-7833646 Specifications
Type Description
Series:M20
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:72
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Insulation Color:Black
Insulation Height:0.335" (8.51mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:11.04mm, 12.63mm
Ingress Protection:-
Features:-
Current Rating (Amps):3A
Voltage Rating:1000V
