SSW-120-02-F-D-RA

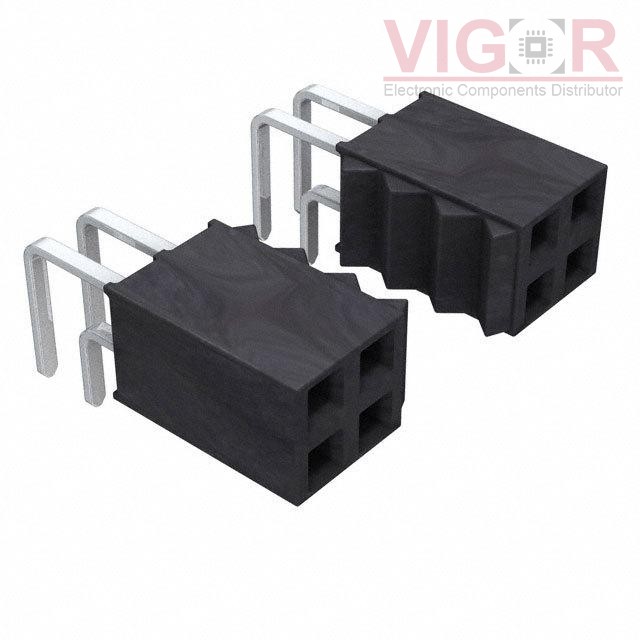

Image is for reference,
please contact us to get the real picture

Part No :: SSW-120-02-F-D-RA

Manufacturer: Samtec, Inc.

Description: CONN RCPT 40POS 0.1 GOLD PCB R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: SSW-120-02-F-D-RA PDF

Availability: 40 pieces

Unit Price: ~~$4.92000~~

Current price of SSW-120-02-F-D-RA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SSW-120-02-F-D-RA Specifications

Type	Description
Series:	SSW
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board or Cable
Number of Positions:	40
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Insulation Color:	Black
Insulation Height:	0.195" (4.95mm)
Contact Length - Post:	0.100" (2.54mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	5.7A per Contact
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
