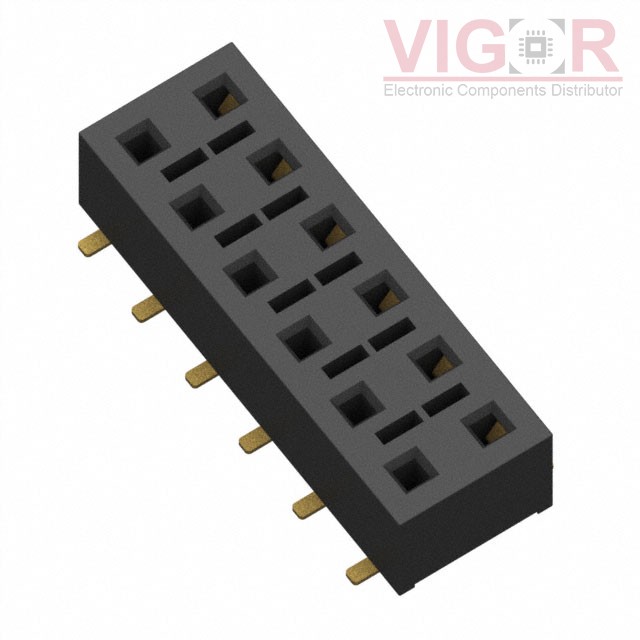

HLE-106-02-G-DV-BE

Image is for reference,
please contact us to get the real picture

Part No :

HLE-106-02-G-DV-BE

Manufacturer
Samtec, Inc.
Description
CONN RCPT 12POS 0.1 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
HLE-106-02-G-DV-BE PDF
Availability
500 pieces
Unit Price
$4.70000

Current price of HLE-106-02-G-DV-BE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:HLE
Package:Tube
Part Status:Active
Connector Type:Receptacle, Bottom Entry
Contact Type:Female Socket
Style:Board to Board
Number of Positions:12
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:20.0µin (0.51µm)
Insulation Color:Black
Insulation Height:0.144" (3.66mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):4.1A per Contact
Voltage Rating:400VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
HOT 5025850870

5025850870

CONN RCPT 8POS 0.059 TIN SMD R/A
HOT 801-43-030-10-012000

801-43-030-10-012000

CONN RCPT 30POS 0.1 GOLD PCB

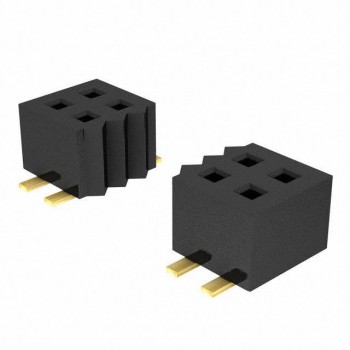

HOT CLP-116-02-G-D-BE-TR
