XN2D-1471

XN2D-1471

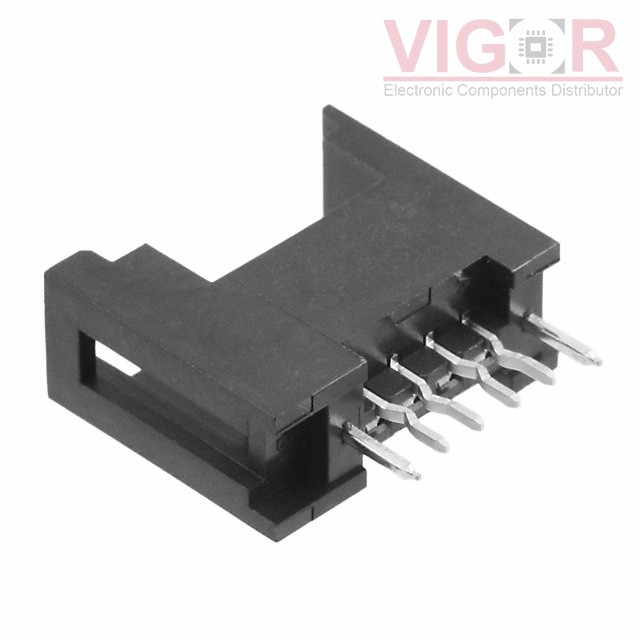

Image is for reference,
please contact us to get the real picture

Part No :

XN2D-1471

Manufacturer
Omron Electronics Components
Description
CONN RCPT 4POS 0.079 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
XN2D-1471 PDF
Availability
200 pieces
Unit Price
$3.34000

Current price of XN2D-1471 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XN2D-1471 Specifications
Type Description
Series:XN2
Package:Bulk
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Cable/Wire
Number of Positions:4
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Detent Lock
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Black
Insulation Height:0.512" (13.00mm)
Contact Length - Post:0.130" (3.30mm)
Operating Temperature:-30°C ~ 75°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):-
Voltage Rating:32VDC
