76314-111LF

76314-111LF

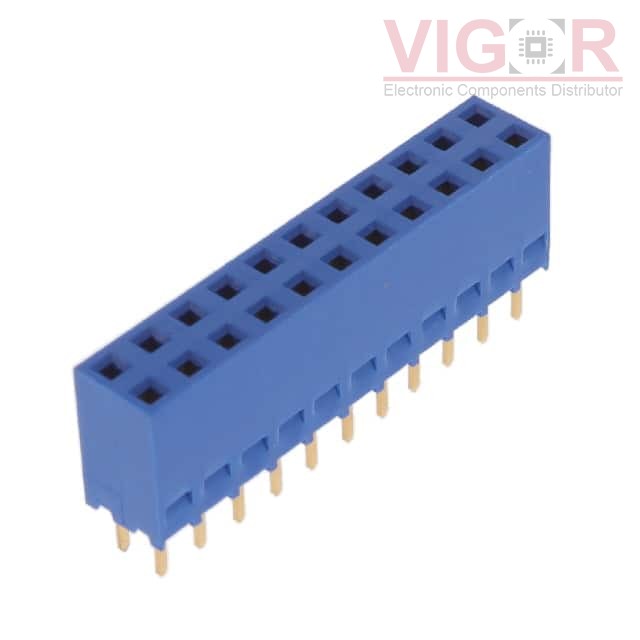

Image is for reference,
please contact us to get the real picture

Part No :

76314-111LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN RCPT 22POS 0.1 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
76314-111LF PDF
Availability
113 pieces
Unit Price
$6.53000

Current price of 76314-111LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

76314-111LF Specifications
Type Description
Series:BergCon®
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:22
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Blue
Insulation Height:0.335" (8.51mm)
Contact Length - Post:0.135" (3.43mm)
Operating Temperature:-
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
