5031542290

5031542290

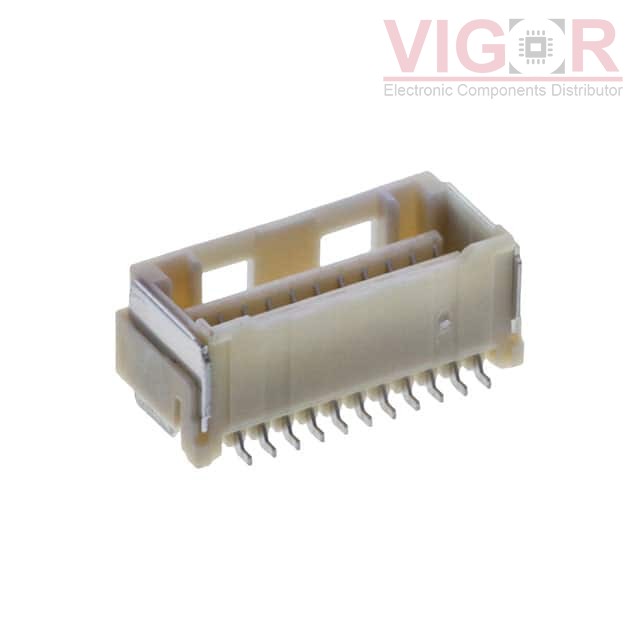

Image is for reference,
please contact us to get the real picture

Part No :

5031542290

Manufacturer
Woodhead - Molex
Description
CONN RCPT 22POS 0.059 TIN SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
5031542290 PDF
Availability
1193 pieces
Unit Price
$2.43000

Current price of 5031542290 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5031542290 Specifications
Type Description
Series:CLIK-Mate 503154
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Receptacle
Contact Type:Forked
Style:Board to Cable/Wire
Number of Positions:22
Number of Positions Loaded:All
Pitch - Mating:0.059" (1.50mm)
Number of Rows:2
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Insulation Color:Beige
Insulation Height:0.344" (8.75mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place, Solder Retention
Current Rating (Amps):-
Voltage Rating:-
