1-534236-4

1-534236-4

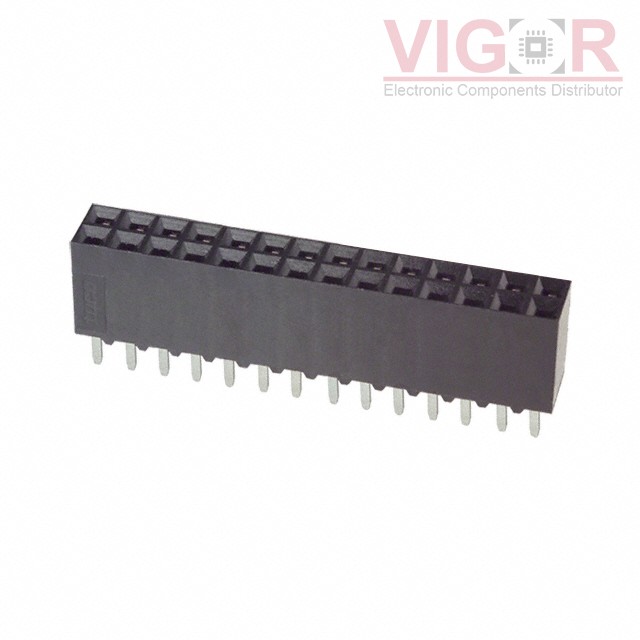

Image is for reference,
please contact us to get the real picture

Part No :

1-534236-4

Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 28POS 0.1 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
1-534236-4 PDF
Availability
0 pieces
Unit Price
$3.28600

Current price of 1-534236-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-534236-4 Specifications
Type Description
Series:AMPMODU Mod II
Package:Tube
Part Status:Active
Connector Type:Receptacle, Bottom or Top Entry
Contact Type:Female Socket
Style:Board to Board
Number of Positions:28
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.340" (8.64mm)
Contact Length - Post:-
Operating Temperature:-65°C ~ 105°C
Material Flammability Rating:-
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
