1-535584-7

1-535584-7

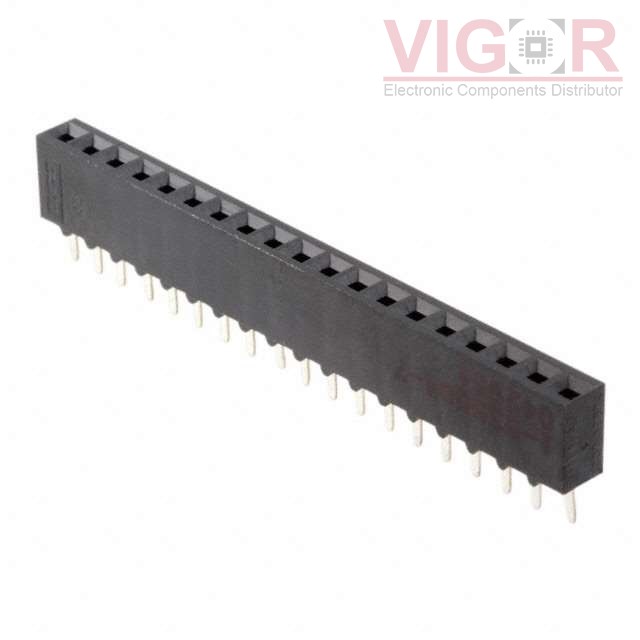

Image is for reference,
please contact us to get the real picture

Part No :

1-535584-7

Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 19POS 0.1 TIN-LEAD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
1-535584-7 PDF
Availability
0 pieces
Unit Price
$1.42100

Current price of 1-535584-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-535584-7 Specifications
Type Description
Series:AMPMODU Mod IV
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:19
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Insulation Color:Black
Insulation Height:0.265" (6.73mm)
Contact Length - Post:0.125" (3.18mm)
Operating Temperature:-65°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):2A
Voltage Rating:-
