0015247063

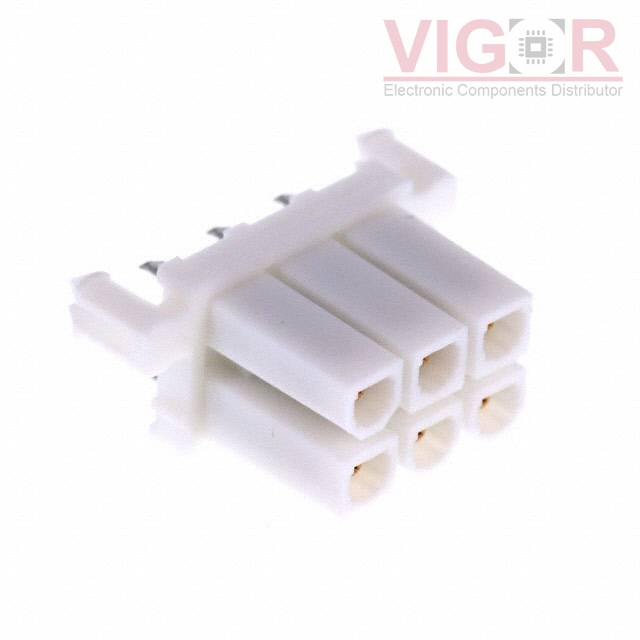

Image is for reference,
please contact us to get the real picture

Part No :: 0015247063

Manufacturer: Woodhead - Molex

Description: CONN RCPT 6POS 0.165 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: 0015247063 PDF

Availability: 2150 pieces

Unit Price: ~~$3.66000~~

Current price of 0015247063 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0015247063 Specifications

Type	Description
Series:	Mini-Fit BMI 42385
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	6
Number of Positions Loaded:	All
Pitch - Mating:	0.165" (4.20mm)
Number of Rows:	2
Row Spacing - Mating:	0.165" (4.20mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	Natural
Insulation Height:	0.446" (11.33mm)
Contact Length - Post:	0.138" (3.50mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Lock
Current Rating (Amps):	-
Voltage Rating:	600V

Please confirm the specifications of the products when ordering.
