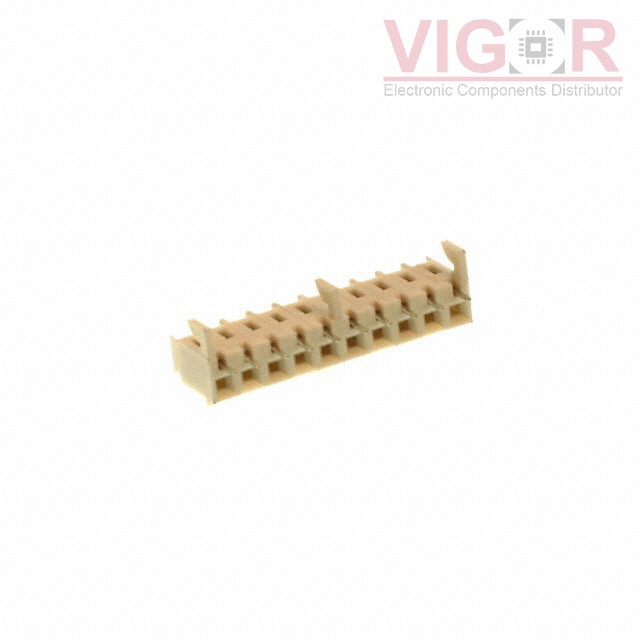

0009484109

0009484109

Image is for reference,
please contact us to get the real picture

Part No :

0009484109

Manufacturer
Woodhead - Molex
Description
CONN RCPT 10POS 0.156 TIN PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
0009484109 PDF
Availability
1786 pieces
Unit Price
$2.95000

Current price of 0009484109 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0009484109 Specifications
Type Description
Series:KK396, 41815
Package:Tray
Part Status:Active
Connector Type:Receptacle, Bottom Entry
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.156" (3.96mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Insulation Color:Natural
Insulation Height:0.449" (11.40mm)
Contact Length - Post:0.125" (3.18mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Hooks
Current Rating (Amps):4.5A
Voltage Rating:600V
