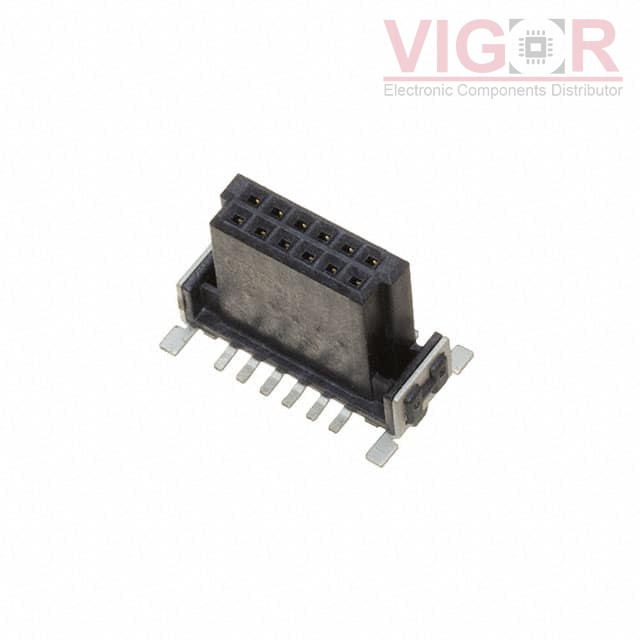

XH5B-1215-5N

Image is for reference,
please contact us to get the real picture

Part No :: XH5B-1215-5N

Manufacturer: Omron Electronics Components

Description: SOCKET, STRAIGHT, SMT PINS

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: XH5B-1215-5N PDF

Availability: 10 pieces

Unit Price: ~~$4.99000~~

Current price of XH5B-1215-5N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XH5B-1215-5N Specifications

Type	Description
Series:	XH5-N
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Socket
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.356" (9.05mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	10.8mm, 12.3mm
Ingress Protection:	-
Features:	Board Guide, Pick and Place, Solder Retention
Current Rating (Amps):	1A
Voltage Rating:	100VAC

Please confirm the specifications of the products when ordering.
