5-534204-2

5-534204-2

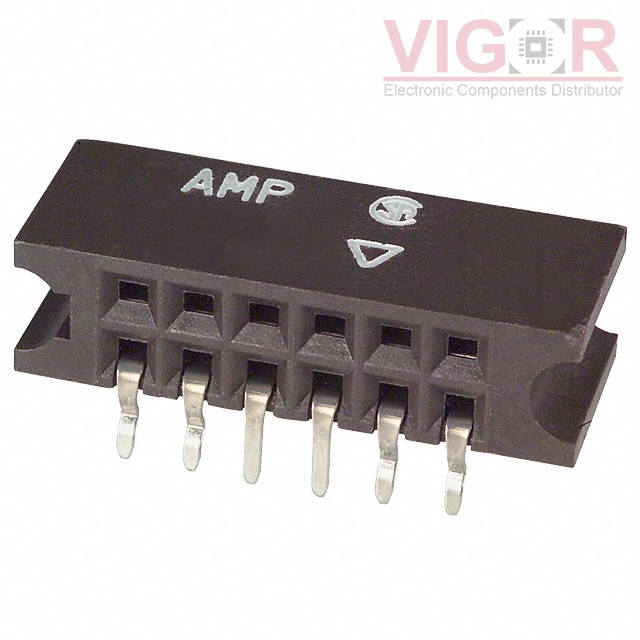

Image is for reference,
please contact us to get the real picture

Part No :

5-534204-2

Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 12POS 0.1 GOLD PCB R/A
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
5-534204-2 PDF
Availability
0 pieces
Unit Price
$2.74400

Current price of 5-534204-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5-534204-2 Specifications
Type Description
Series:AMPMODU Mod II
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:12
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole, Right Angle
Termination:Kinked Pin, Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.238" (6.05mm)
Contact Length - Post:0.115" (2.92mm)
Operating Temperature:-
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Guide Pin Ears
Current Rating (Amps):-
Voltage Rating:-
