HLE-115-02-SM-DV-BE-A-TR

HLE-115-02-SM-DV-BE-A-TR

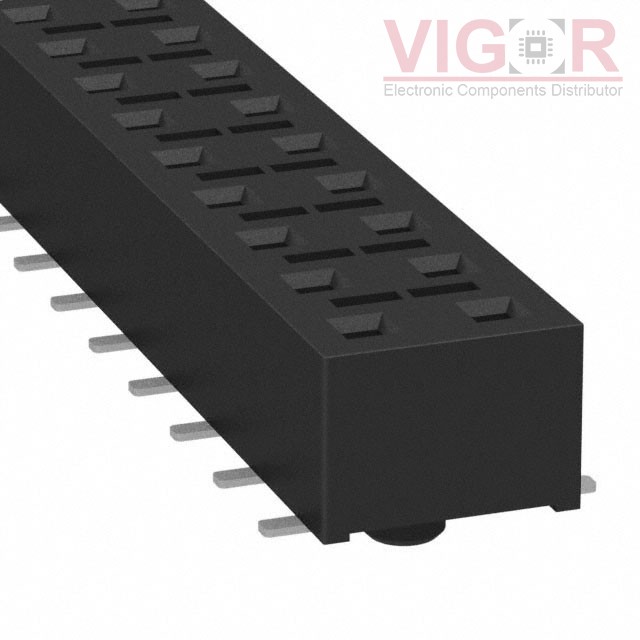

Image is for reference,
please contact us to get the real picture

Part No :

HLE-115-02-SM-DV-BE-A-TR

Manufacturer
Samtec, Inc.
Description
CONN RCPT 30POS 0.1 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
HLE-115-02-SM-DV-BE-A-TR PDF
Availability
0 pieces
Unit Price
$6.76400

Current price of HLE-115-02-SM-DV-BE-A-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HLE-115-02-SM-DV-BE-A-TR Specifications
Type Description
Series:HLE
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Receptacle, Bottom Entry
Contact Type:Female Socket
Style:Board to Board
Number of Positions:30
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.144" (3.66mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):4.1A per Contact
Voltage Rating:400VAC
