XH5F-1215-N

XH5F-1215-N

Image is for reference,
please contact us to get the real picture

Part No :

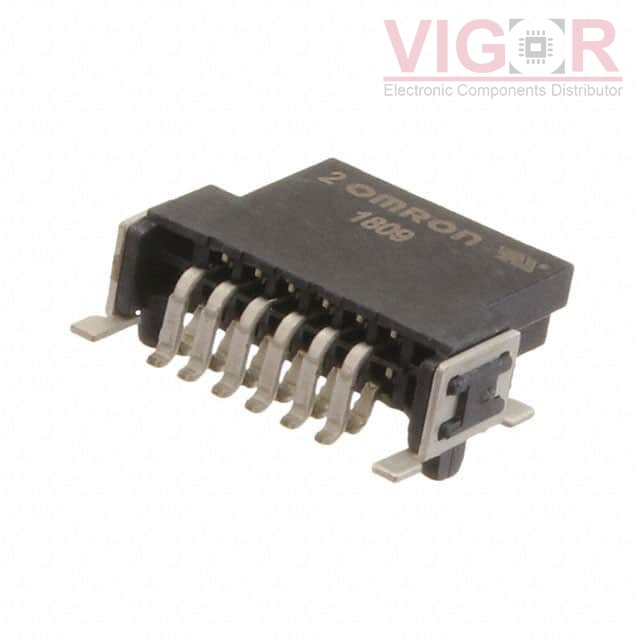

XH5F-1215-N

Manufacturer
Omron Electronics Components
Description
SOCKET, RIGHT-ANGLE, SMT PINS
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
XH5F-1215-N PDF
Availability
9 pieces
Unit Price
$3.84000

Current price of XH5F-1215-N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XH5F-1215-N Specifications
Type Description
Series:XH5-N
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Socket
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:12
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Insulation Color:Black
Insulation Height:0.146" (3.70mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide, Solder Retention
Current Rating (Amps):1A
Voltage Rating:100VAC
