209257016001013

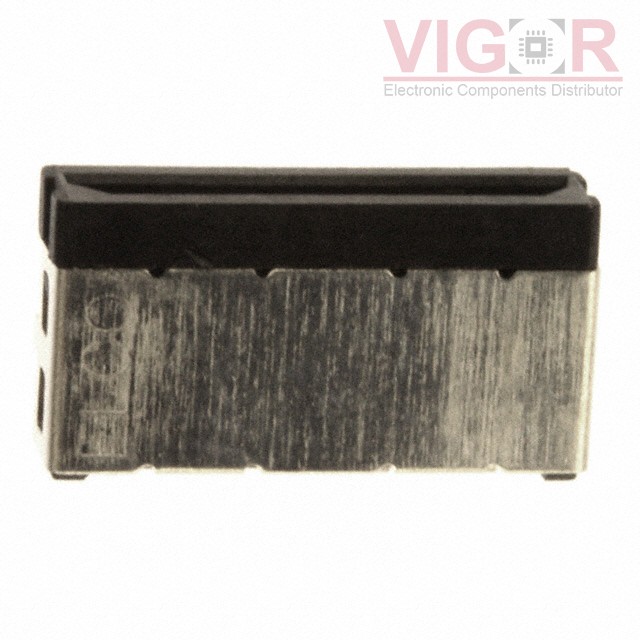

Image is for reference,
please contact us to get the real picture

Part No :: 209257016001013

Manufacturer: Elco (AVX)

Description: CONN RCPT 16P 0.049 GOLD SMD R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Aug 23 - Aug 27 2025

DataSheet: 209257016001013 PDF

Availability: 3673 pieces

Unit Price: ~~$4.83000~~

Current price of 209257016001013 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

209257016001013 Specifications

Type	Description
Series:	9257
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Blade Socket
Style:	Board to Cable/Wire
Number of Positions:	16
Number of Positions Loaded:	All
Pitch - Mating:	0.049" (1.25mm)
Number of Rows:	2
Row Spacing - Mating:	-
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	31.5µin (0.80µm)
Insulation Color:	-
Insulation Height:	0.118" (3.00mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide, Shielded, Solder Retention
Current Rating (Amps):	1A per Contact
Voltage Rating:	125VAC

Please confirm the specifications of the products when ordering.
