1-2307815-0

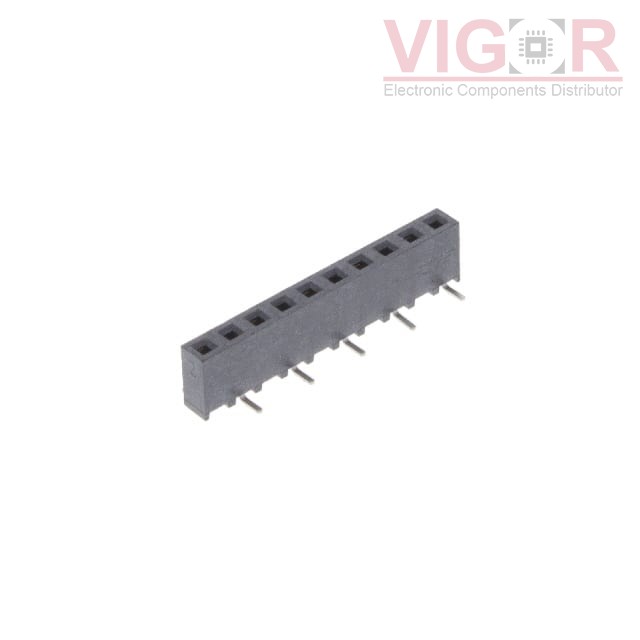

Image is for reference,
please contact us to get the real picture

Part No :: 1-2307815-0

Manufacturer: TE Connectivity AMP Connectors

Description: 10P,2MM,BB,REC,SRVT,SMD,AU.76,TR

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: 1-2307815-0 PDF

Availability: 1766 pieces

Unit Price: ~~$2.00000~~

Current price of 1-2307815-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-2307815-0 Specifications

Type	Description
Series:	AMPMODU
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle, Bottom or Top Entry
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	10
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	Black
Insulation Height:	0.177" (4.50mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Pick and Place
Current Rating (Amps):	2A
Voltage Rating:	125V

Please confirm the specifications of the products when ordering.
