643428-3

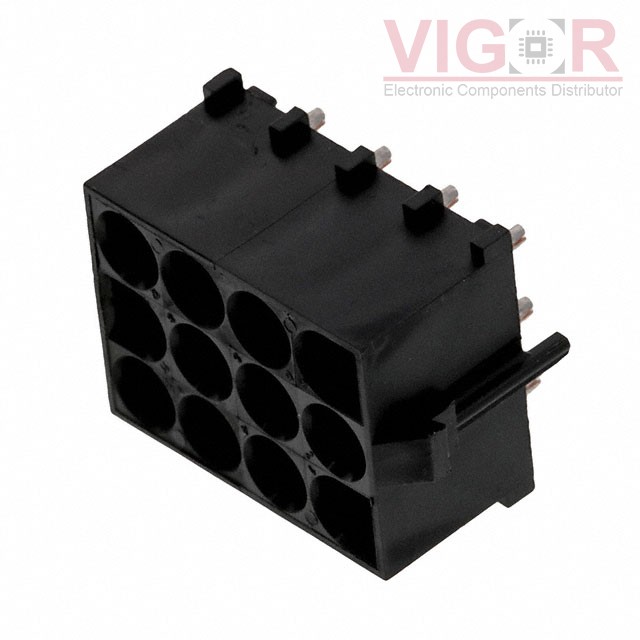

Image is for reference,
please contact us to get the real picture

Part No :: 643428-3

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HDR 12POS 0.25 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: 643428-3 PDF

Availability: 261 pieces

Unit Price: ~~$3.20000~~

Current price of 643428-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

643428-3 Specifications

Type	Description
Series:	Universal MATE-N-LOK
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Female Socket
Style:	Board to Cable/Wire
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.250" (6.35mm)
Number of Rows:	3
Row Spacing - Mating:	0.250" (6.35mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	White
Insulation Height:	0.580" (14.73mm)
Contact Length - Post:	0.155" (3.94mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
