CLE-158-01-G-DV-A

CLE-158-01-G-DV-A

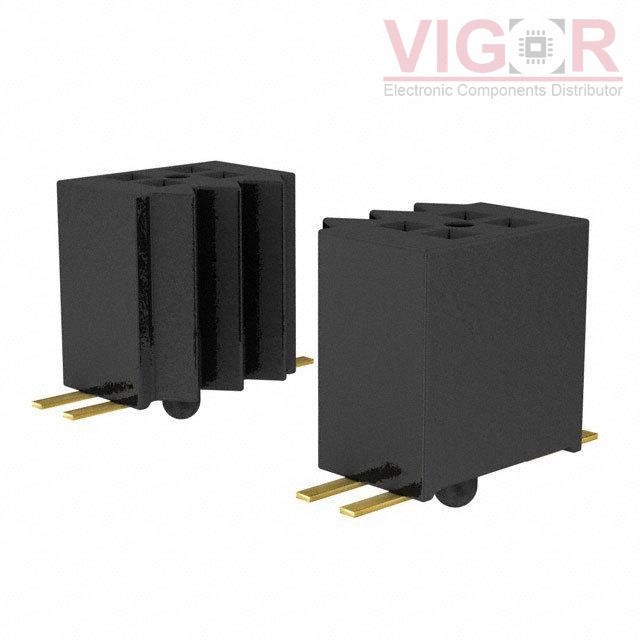

Image is for reference,
please contact us to get the real picture

Part No :

CLE-158-01-G-DV-A

Manufacturer
Samtec, Inc.
Description
CONN RCPT 116POS 0.031 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
CLE-158-01-G-DV-A PDF
Availability
0 pieces
Unit Price
$19.48167

Current price of CLE-158-01-G-DV-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CLE-158-01-G-DV-A Specifications
Type Description
Series:CLE
Package:Tube
Part Status:Active
Connector Type:Receptacle, Pass Through
Contact Type:Female Socket
Style:Board to Board
Number of Positions:116
Number of Positions Loaded:All
Pitch - Mating:0.031" (0.80mm)
Number of Rows:2
Row Spacing - Mating:0.047" (1.20mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.130" (3.30mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):2.7A per Contact
Voltage Rating:-
