HPF-03-01-T-S

HPF-03-01-T-S

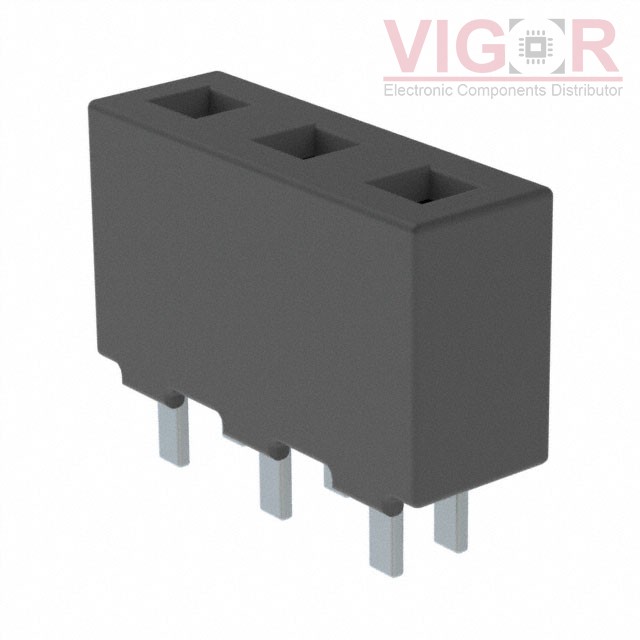

Image is for reference,
please contact us to get the real picture

Part No :

HPF-03-01-T-S

Manufacturer
Samtec, Inc.
Description
CONN RCPT 3POS 0.2 TIN PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
HPF-03-01-T-S PDF
Availability
385 pieces
Unit Price
$2.37000

Current price of HPF-03-01-T-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HPF-03-01-T-S Specifications
Type Description
Series:HPF
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:3
Number of Positions Loaded:All
Pitch - Mating:0.200" (5.08mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Insulation Color:Black
Insulation Height:0.351" (8.92mm)
Contact Length - Post:0.102" (2.60mm)
Operating Temperature:-
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
