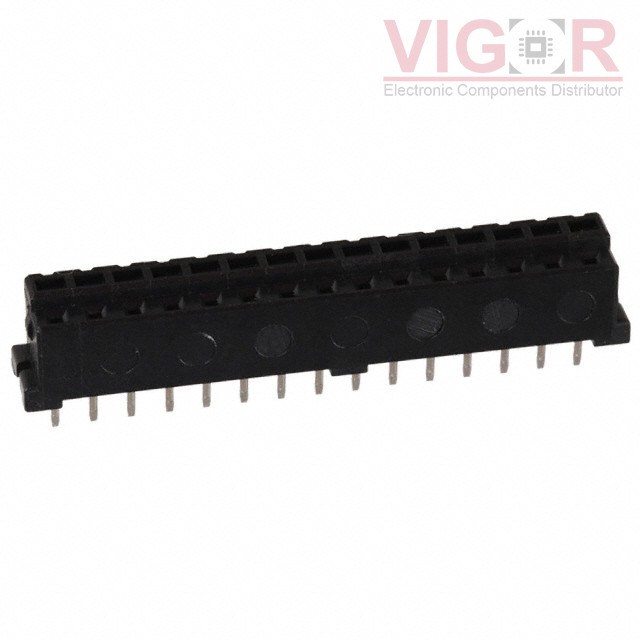

DF3-15S-2DSA(25)

DF3-15S-2DSA(25)

Image is for reference,
please contact us to get the real picture

Part No :

DF3-15S-2DSA(25)

Manufacturer
Hirose
Description
CONN RCPT 15POS 0.079 TIN PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
DF3-15S-2DSA(25) PDF
Availability
0 pieces
Unit Price
$1.93533

Current price of DF3-15S-2DSA(25) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF3-15S-2DSA(25) Specifications
Type Description
Series:DF3
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:15
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Insulation Color:Black
Insulation Height:0.232" (5.90mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:6.6mm, 7.5mm
Ingress Protection:-
Features:-
Current Rating (Amps):3A
Voltage Rating:30VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SMH-103-02-T-D

SMH-103-02-T-D

CONN RCPT 6POS 0.1 TIN SMD R/A
HOT 833-87-028-20-001101

833-87-028-20-001101

CONN SCKT 28P 0.079 GOLD PCB RA

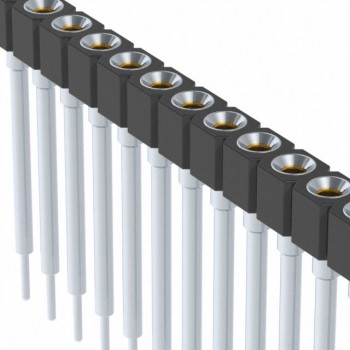

HOT 316-91-155-41-001000
