CES-110-01-L-D

CES-110-01-L-D

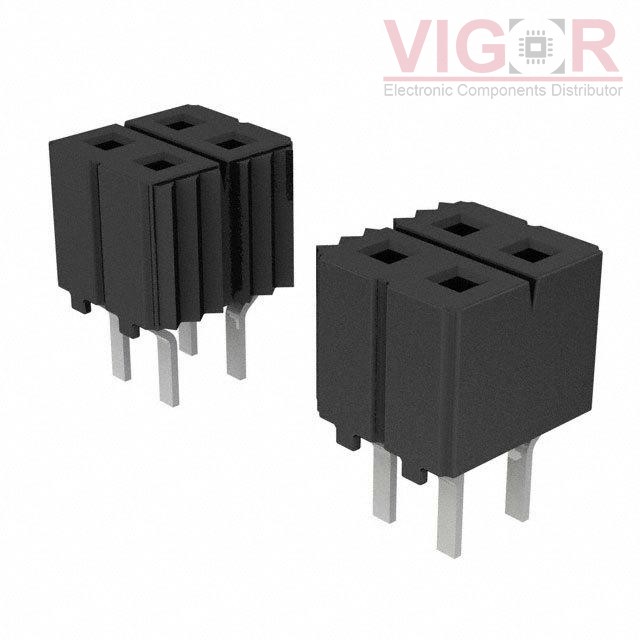

Image is for reference,
please contact us to get the real picture

Part No :

CES-110-01-L-D

Manufacturer
Samtec, Inc.
Description
CONN RCPT 20POS 0.1 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
CES-110-01-L-D PDF
Availability
57 pieces
Unit Price
$3.06000

Current price of CES-110-01-L-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CES-110-01-L-D Specifications
Type Description
Series:CES
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.200" (5.08mm)
Contact Length - Post:0.128" (3.25mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
