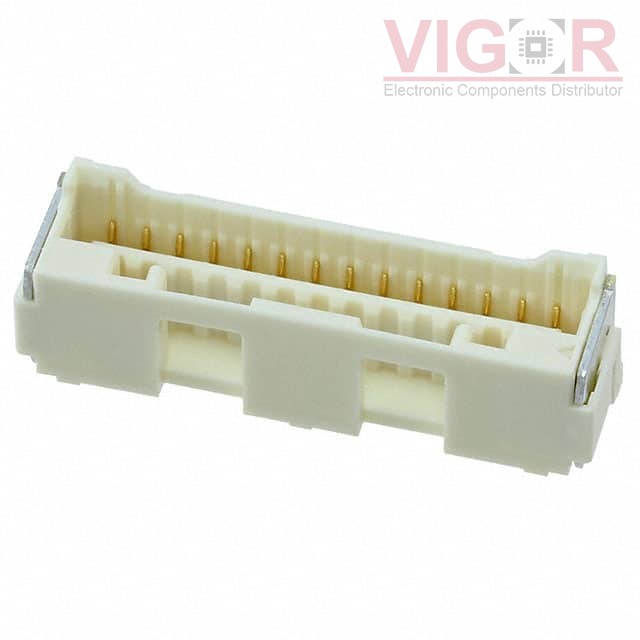

5054051470

5054051470

Image is for reference,
please contact us to get the real picture

Part No :

5054051470

Manufacturer
Woodhead - Molex
Description
CONN RCPT 14POS 0.059 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
5054051470 PDF
Availability
0 pieces
Unit Price
$0.97454

Current price of 5054051470 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5054051470 Specifications
Type Description
Series:CLIK-Mate 505405
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Receptacle
Contact Type:Forked
Style:Board to Cable/Wire
Number of Positions:14
Number of Positions Loaded:All
Pitch - Mating:0.059" (1.50mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Beige
Insulation Height:0.285" (7.25mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Solder Retention
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:100V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SQT-144-01-L-S

SQT-144-01-L-S

CONN RCPT 44POS 0.079 GOLD PCB

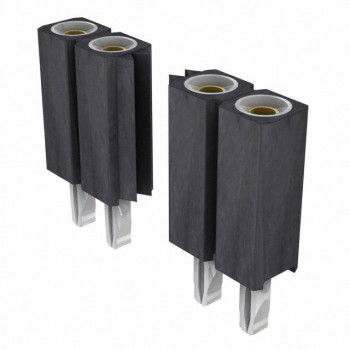

HOT 801-83-034-65-001101

801-83-034-65-001101

CONN SOCKET 34POS 0.1 GOLD PCB

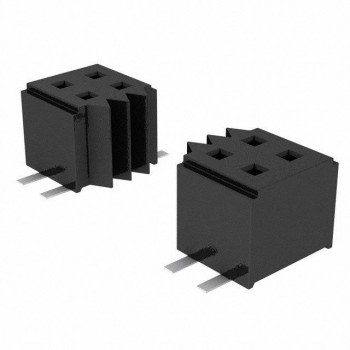

HOT CLM-140-02-L-D-K
