BCS-112-L-D-TE-001

BCS-112-L-D-TE-001

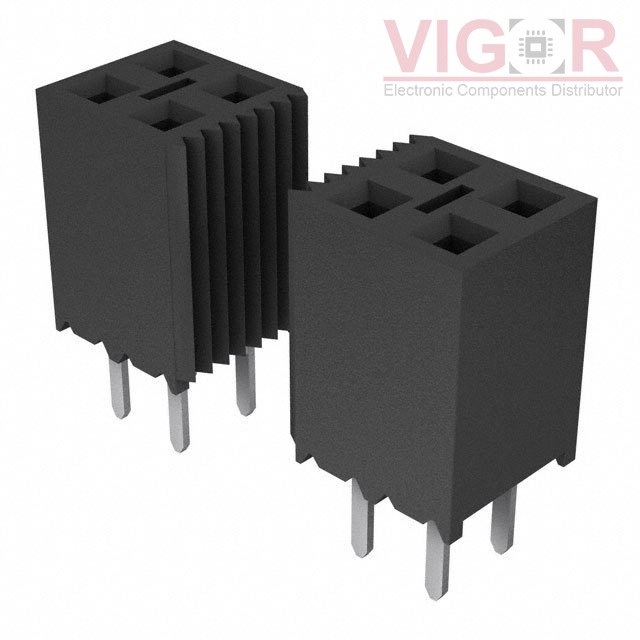

Image is for reference,
please contact us to get the real picture

Part No :

BCS-112-L-D-TE-001

Manufacturer
Samtec, Inc.
Description
CONN RCPT 24POS 0.1 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
BCS-112-L-D-TE-001 PDF
Availability
250 pieces
Unit Price
$5.38000

Current price of BCS-112-L-D-TE-001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BCS-112-L-D-TE-001 Specifications
Type Description
Series:Tiger Claw™ BCS
Package:Bulk
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:24
Number of Positions Loaded:23
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.290" (7.37mm)
Contact Length - Post:0.122" (3.10mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):4.6A per Contact
Voltage Rating:475VAC
