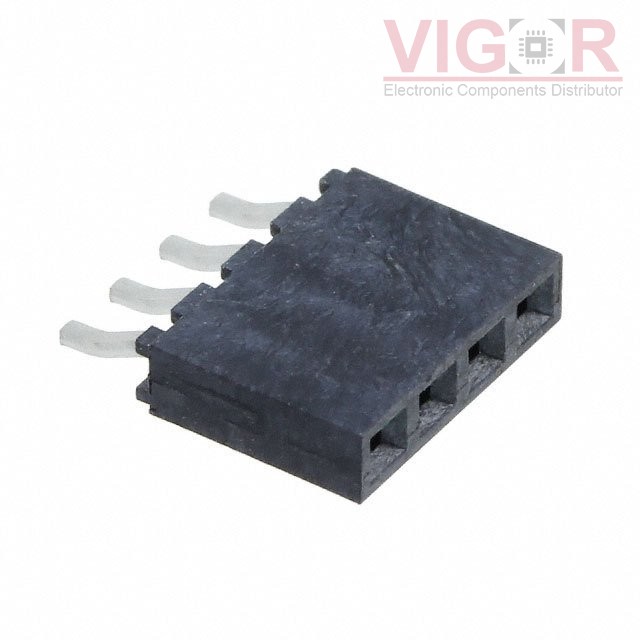

M22-6540442R

M22-6540442R

Image is for reference,
please contact us to get the real picture

Part No :

M22-6540442R

Manufacturer
Harwin
Description
CONN RCPT 4P 0.079 GOLD SMD R/A
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
M22-6540442R PDF
Availability
2014 pieces
Unit Price
$0.83000

Current price of M22-6540442R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M22-6540442R Specifications
Type Description
Series:M22
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Receptacle
Contact Type:Forked
Style:Board to Board
Number of Positions:4
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:0.59µin (0.015µm)
Insulation Color:Black
Insulation Height:0.079" (2.00mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):2A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 803-87-046-10-004101

803-87-046-10-004101

CONN SOCKET 46POS 0.1 GOLD PCB
HOT PPTC062LJBN-RC

PPTC062LJBN-RC

CONN HDR 12POS 0.1 TIN PCB R/A

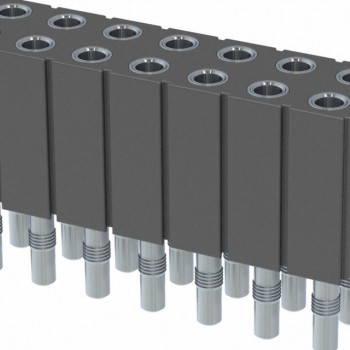

HOT 803-99-060-61-001000
