SSW-113-02-T-D

SSW-113-02-T-D

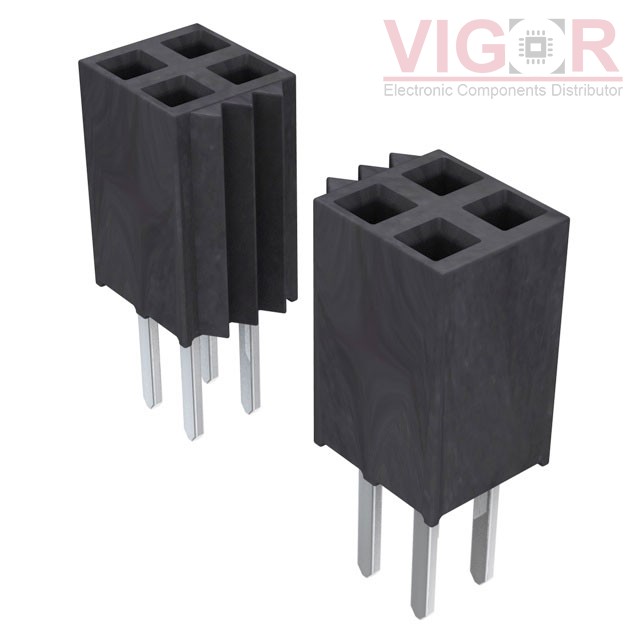

Image is for reference,
please contact us to get the real picture

Part No :

SSW-113-02-T-D

Manufacturer
Samtec, Inc.
Description
CONN RCPT .100" 26POS DUAL TIN
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
SSW-113-02-T-D PDF
Availability
504 pieces
Unit Price
$3.03000

Current price of SSW-113-02-T-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SSW-113-02-T-D Specifications
Type Description
Series:SSW
Package:Bulk
Part Status:Active
Connector Type:Receptacle
Contact Type:Forked
Style:Board to Board or Cable
Number of Positions:26
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Insulation Color:Black
Insulation Height:0.335" (8.51mm)
Contact Length - Post:0.194" (4.93mm)
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):5.7A per Contact
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 25647201RP2

25647201RP2

CONN RCPT 72POS 0.079 GOLD PCB
HOT SSQ-102-01-T-S

SSQ-102-01-T-S

CONN RCPT 2POS 0.1 TIN PCB

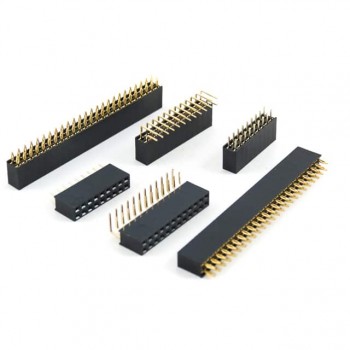

HOT 2044-2X04G00RB-LCP
