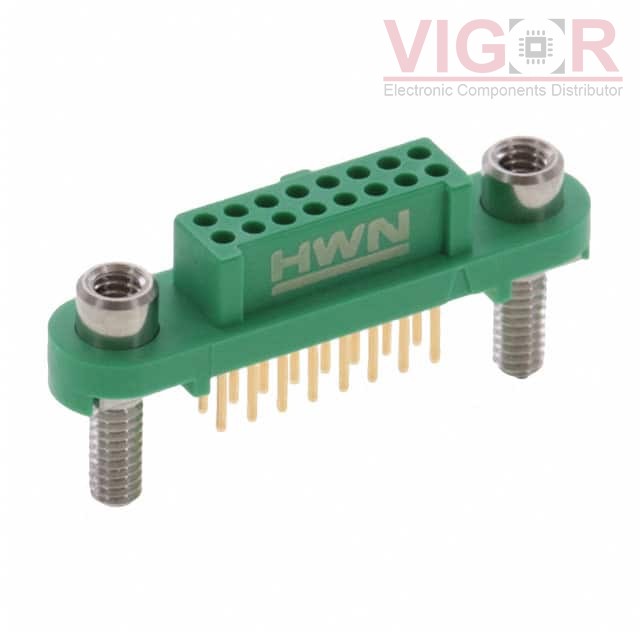

G125-FV11605F3P

G125-FV11605F3P

Image is for reference,
please contact us to get the real picture

Part No :

G125-FV11605F3P

Manufacturer
Harwin
Description
CONN RCPT 16POS 0.049 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
G125-FV11605F3P PDF
Availability
36 pieces
Unit Price
$27.31000

Current price of G125-FV11605F3P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

G125-FV11605F3P Specifications
Type Description
Series:Gecko SL
Package:Cut Tape (CT)
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:16
Number of Positions Loaded:All
Pitch - Mating:0.049" (1.25mm)
Number of Rows:2
Row Spacing - Mating:0.049" (1.25mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Screw Lock
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Green
Insulation Height:0.207" (5.25mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-65°C ~ 150°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:7.25mm, 7.33mm
Ingress Protection:-
Features:Jackscrews, Pick and Place, Polarizing Key
Current Rating (Amps):2A
Voltage Rating:450V
