SDL-105-G-11

SDL-105-G-11

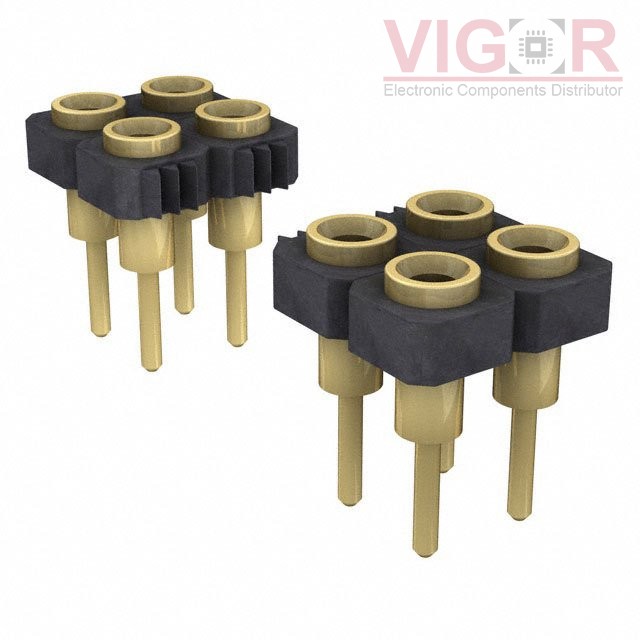

Image is for reference,
please contact us to get the real picture

Part No :

SDL-105-G-11

Manufacturer
Samtec, Inc.
Description
CONN RCPT 10POS 0.1 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
SDL-105-G-11 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SDL-105-G-11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDL-105-G-11 Specifications
Type Description
Series:SDL
Package:Tube
Part Status:Discontinued at Digi-Key
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.132" (3.35mm)
Contact Length - Post:0.108" (2.75mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:-
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
