814-22-016-30-009101

814-22-016-30-009101

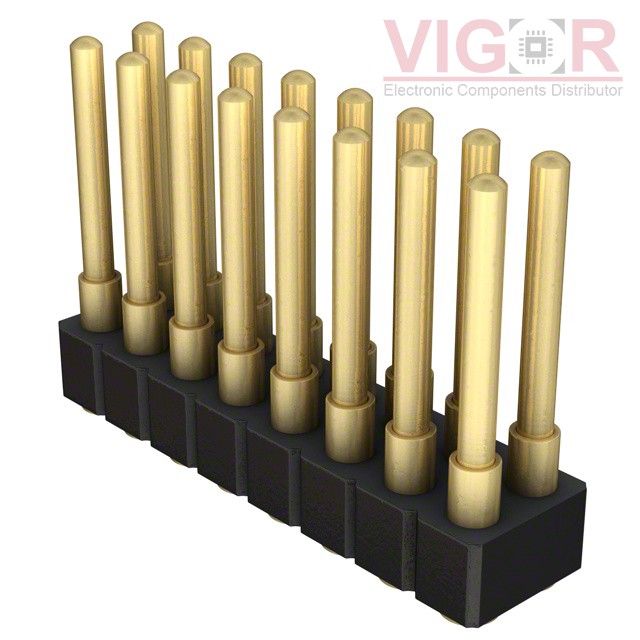

Image is for reference,
please contact us to get the real picture

Part No :

814-22-016-30-009101

Manufacturer
Mill-Max
Description
CONN SPRING PISTON 16POS SMD
Catalog
Rectangular Connectors - Spring Loaded
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
814-22-016-30-009101 PDF
Availability
0 pieces
Unit Price
$11.25000

Current price of 814-22-016-30-009101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

814-22-016-30-009101 Specifications
Type Description
Series:814
Package:Bulk
Part Status:Active
Connector Type:Piston
Number of Contacts:16
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Mounting Type:Surface Mount
Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:20.0µin (0.51µm)
