Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 1-2324271-8 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | - |
Package: | Tape & Reel (TR) |
Part Status: | Active |

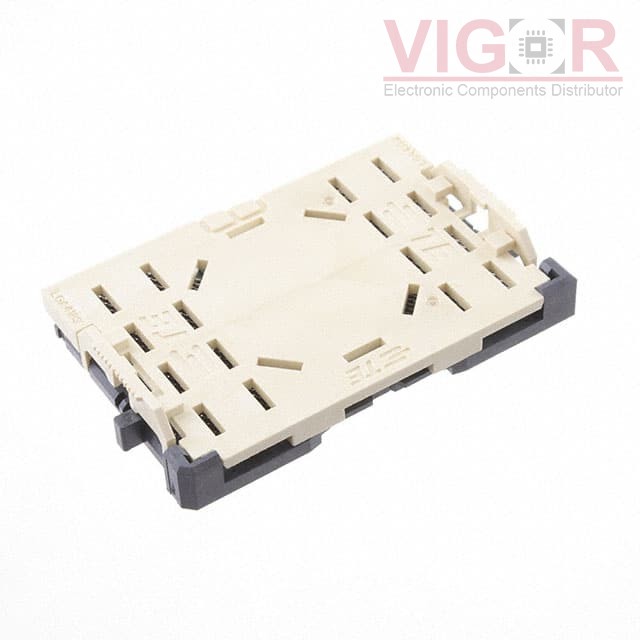

Type: | LGA 4189 |
Number of Positions or Pins (Grid): | 2092 |
Pitch - Mating: | 0.039" (1.00mm) |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
Contact Material - Mating: | Copper Alloy |
Mounting Type: | Surface Mount |
Features: | Open Frame |
Termination: | Solder |
Pitch - Post: | 0.034" (0.86mm) |
Contact Finish - Post: | Gold |
Contact Finish Thickness - Post: | 15.0µin (0.38µm) |
Contact Material - Post: | Copper Alloy |
Housing Material: | Thermoplastic |
Operating Temperature: | -25°C ~ 100°C |
