Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 110-87-328-41-001101 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

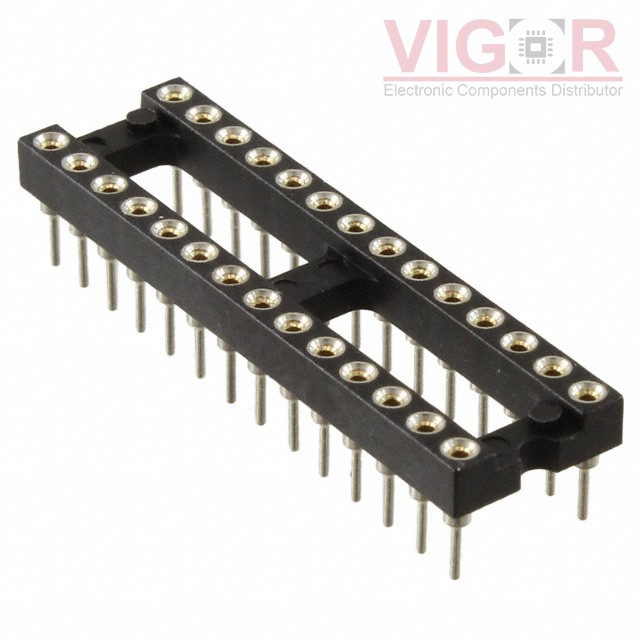

Type | Description |
---|---|
Series: | 110 |
Package: | Tube |
Part Status: | Active |
Type: | DIP, 0.3" (7.62mm) Row Spacing |
Number of Positions or Pins (Grid): | 28 (2 x 14) |
Pitch - Mating: | 0.100" (2.54mm) |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | Flash |
Contact Material - Mating: | Beryllium Copper |
Mounting Type: | Through Hole |
Features: | Open Frame |
Termination: | Solder |
Pitch - Post: | 0.100" (2.54mm) |
Contact Finish - Post: | Tin |
Contact Finish Thickness - Post: | - |
Contact Material - Post: | Brass |
Housing Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
Operating Temperature: | -55°C ~ 125°C |
