ED020PLCZ

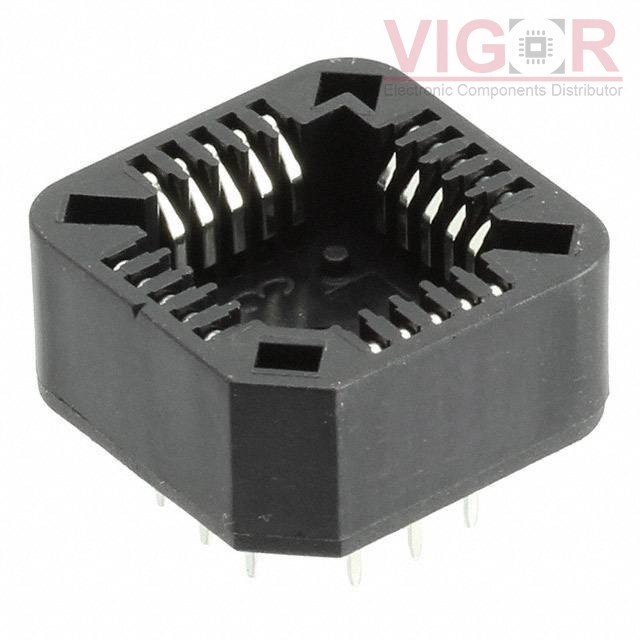

Image is for reference,
please contact us to get the real picture

Part No :: ED020PLCZ

Manufacturer: On-Shore Technology, Inc.

Description: CONN SOCKET PLCC 20POS TIN

Catalog: Sockets for ICs, Transistors

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: ED020PLCZ PDF

Availability: 957 pieces

Unit Price: ~~$0.77000~~

Current price of ED020PLCZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ED020PLCZ Specifications

Type	Description
Series:	ED
Package:	Tube
Part Status:	Active
Type:	PLCC
Number of Positions or Pins (Grid):	20 (4 x 5)
Pitch - Mating:	0.100" (2.54mm)
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Material - Mating:	Phosphor Bronze
Mounting Type:	Through Hole
Features:	Closed Frame
Termination:	Solder
Pitch - Post:	0.100" (2.54mm)
Contact Finish - Post:	Tin
Contact Finish Thickness - Post:	-
Contact Material - Post:	Phosphor Bronze
Housing Material:	Polybutylene Terephthalate (PBT)
Operating Temperature:	-55°C ~ 105°C
