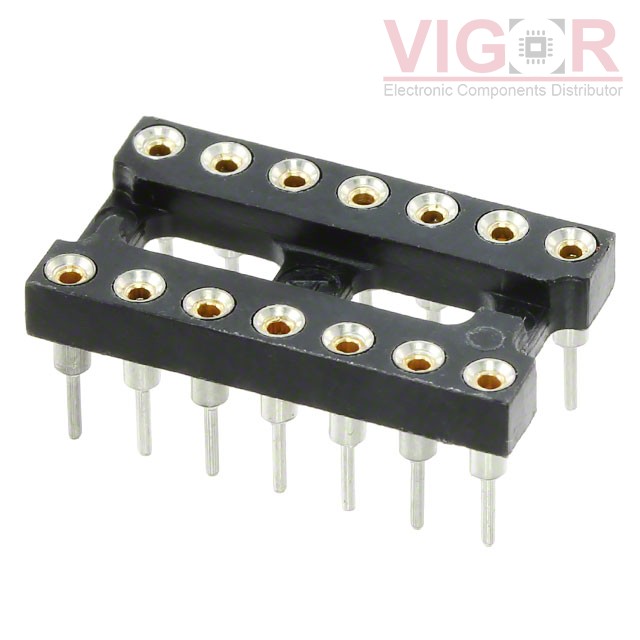

814-AG11D-ESL-LF

814-AG11D-ESL-LF

Image is for reference,
please contact us to get the real picture

Part No :

814-AG11D-ESL-LF

Manufacturer
TE Connectivity AMP Connectors
Description
CONN IC DIP SOCKET 14POS GOLD
Catalog
Sockets for ICs, Transistors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
814-AG11D-ESL-LF PDF
Availability
981 pieces
Unit Price
$1.61000

Current price of 814-AG11D-ESL-LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

814-AG11D-ESL-LF Specifications
Type Description
Series:800
Package:Tube
Part Status:Active
Type:DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid):14 (2 x 7)
Pitch - Mating:0.100" (2.54mm)
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Material - Mating:Beryllium Copper
Mounting Type:Through Hole
Features:Open Frame
Termination:Solder
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:Gold
Contact Finish Thickness - Post:Flash
Contact Material - Post:Copper
Housing Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature:-55°C ~ 105°C
