ED40DT

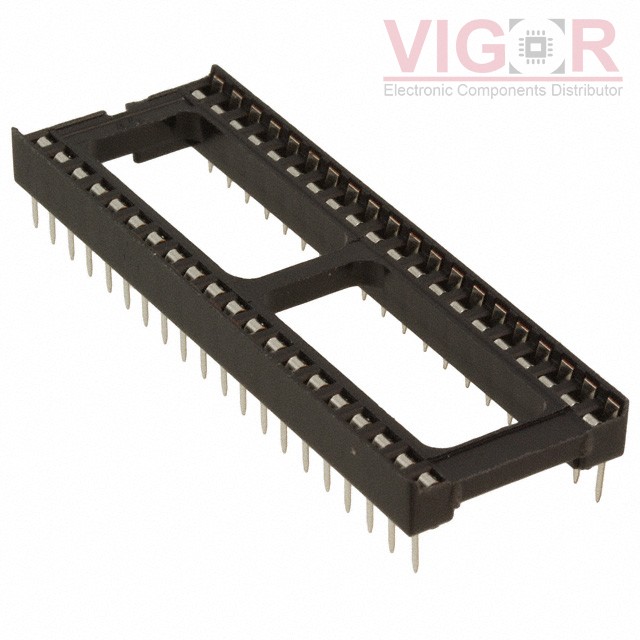

Image is for reference,
please contact us to get the real picture

Part No :: ED40DT

Manufacturer: On-Shore Technology, Inc.

Description: CONN IC DIP SOCKET 40POS TIN

Catalog: Sockets for ICs, Transistors

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: ED40DT PDF

Availability: 5534 pieces

Unit Price: ~~$0.48000~~

Current price of ED40DT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ED40DT Specifications

Type	Description
Series:	ED
Package:	Tube
Part Status:	Active
Type:	DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid):	40 (2 x 20)
Pitch - Mating:	0.100" (2.54mm)
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	60.0µin (1.52µm)
Contact Material - Mating:	Phosphor Bronze
Mounting Type:	Through Hole
Features:	Open Frame
Termination:	Solder
Pitch - Post:	0.100" (2.54mm)
Contact Finish - Post:	Tin
Contact Finish Thickness - Post:	60.0µin (1.52µm)
Contact Material - Post:	Phosphor Bronze
Housing Material:	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature:	-55°C ~ 110°C
