1825093-4

1825093-4

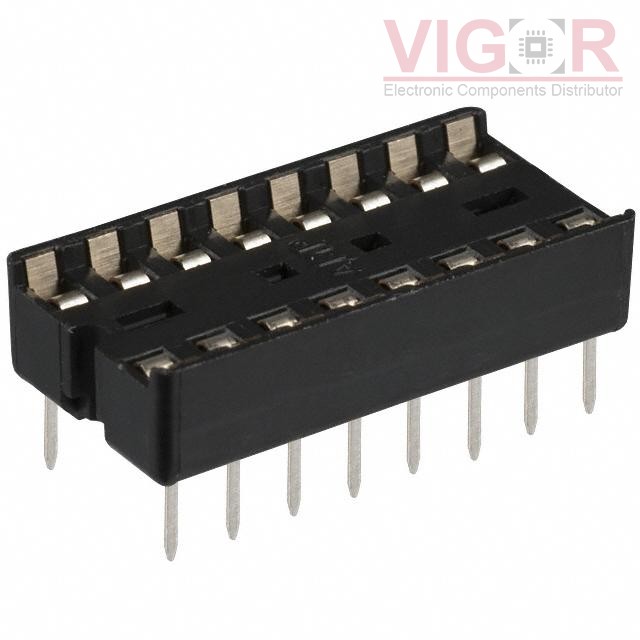

Image is for reference,
please contact us to get the real picture

Part No :

1825093-4

Manufacturer
TE Connectivity AMP Connectors
Description
CONN IC DIP SOCKET 16POS GOLD
Catalog
Sockets for ICs, Transistors
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
1825093-4 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 1825093-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1825093-4 Specifications
Type Description
Series:Diplomate DL
Package:Tube
Part Status:Obsolete
Type:DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid):16 (2 x 8)
Pitch - Mating:0.100" (2.54mm)
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Material - Mating:Phosphor Bronze
Mounting Type:Through Hole
Features:Closed Frame
Termination:Solder
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:Gold
Contact Finish Thickness - Post:15.0µin (0.38µm)
Contact Material - Post:Phosphor Bronze
Housing Material:Thermoplastic, Glass Filled
Operating Temperature:-55°C ~ 125°C
