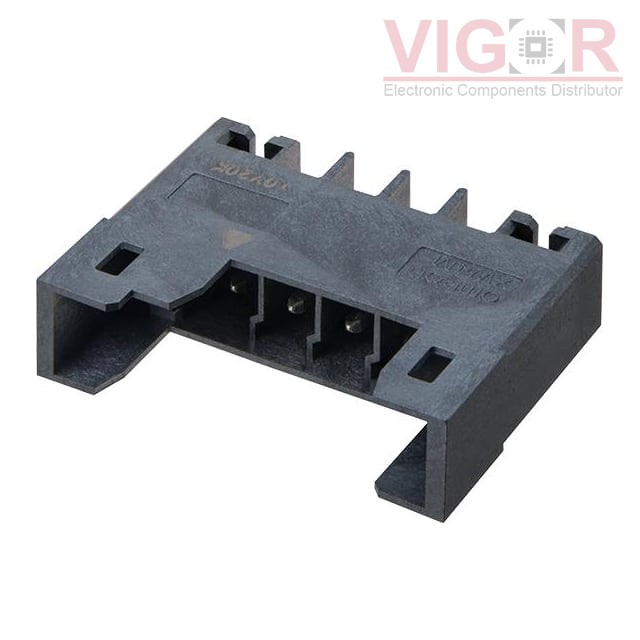

XW4M-08D1-H1DA

Image is for reference,
please contact us to get the real picture

Part No :: XW4M-08D1-H1DA

Manufacturer: Omron Electronics Components

Description: PLUG,SINGLE-ROW,RIGHT-ANGLE,GOLD

Catalog: Terminal Blocks - Headers, Plugs and Sockets

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: XW4M-08D1-H1DA PDF

Availability: 0 pieces

Unit Price: ~~$10.17000~~

Current price of XW4M-08D1-H1DA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XW4M-08D1-H1DA Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Type:	Header, Male Pins, Shrouded (4 Side)
Number of Positions:	8
Positions Per Level:	8
Number of Levels:	1
Pitch:	0.138" (3.50mm)
Header Orientation:	90°, Right Angle
Plug Wire Entry:	-
Termination Style:	Solder
Mounting Type:	Through Hole
Current - IEC:	8A
Voltage - IEC:	160 A
Current - UL:	8 V
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	-
Wire Gauge or Range - mm²:	-
Color:	Black
Operating Temperature:	-40°C ~ 100°C
Contact Mating Finish:	Gold
Features:	Latches
