EDSTL950/20

EDSTL950/20

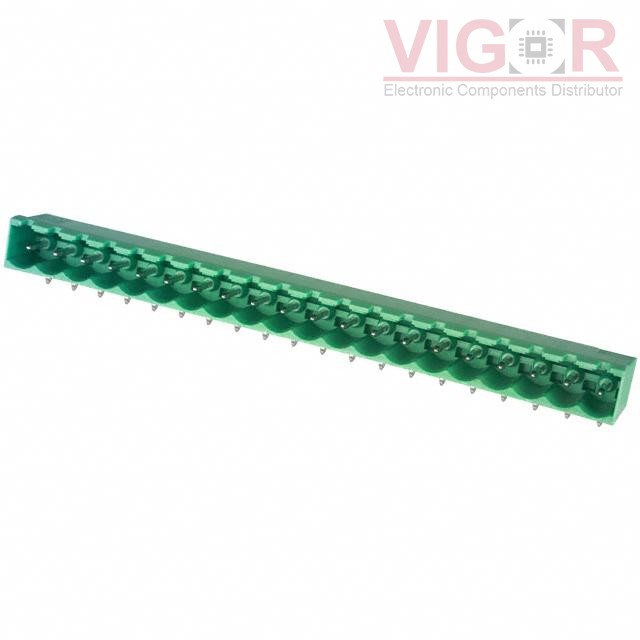

Image is for reference,
please contact us to get the real picture

Part No :

EDSTL950/20

Manufacturer
On-Shore Technology, Inc.
Description
TERM BLOCK HDR 20POS 90DEG 5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
EDSTL950/20 PDF
Availability
34 pieces
Unit Price
$5.05000

Current price of EDSTL950/20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EDSTL950/20 Specifications
Type Description
Series:EDSTL950
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:20
Positions Per Level:20
Number of Levels:1
Pitch:0.197" (5.00mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:-
Mounting Type:Solder
Current - IEC:-
Voltage - IEC:-
Current - UL:-
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:-
Operating Temperature:-30°C ~ 105°C
Contact Mating Finish:-
Features:-
