282815-7

282815-7

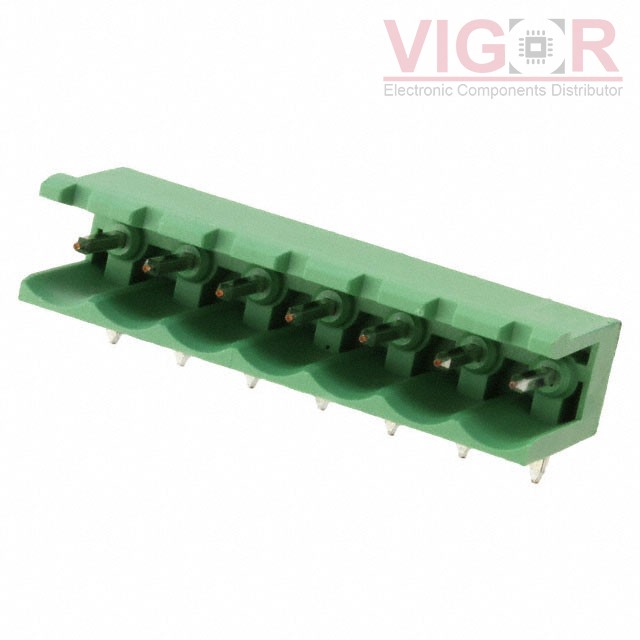

Image is for reference,
please contact us to get the real picture

Part No :

282815-7

Manufacturer
TE Connectivity AMP Connectors
Description
TERM BLOCK HDR 7POS 90DEG 5.08MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
282815-7 PDF
Availability
0 pieces
Unit Price
$0.87721

Current price of 282815-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

282815-7 Specifications
Type Description
Series:Buchanan
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (2 Side)
Number of Positions:7
Positions Per Level:7
Number of Levels:1
Pitch:0.200" (5.08mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:-
Voltage - IEC:-
Current - UL:15 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Green
Operating Temperature:-40°C ~ 110°C
Contact Mating Finish:Tin
Features:Side Stacking
