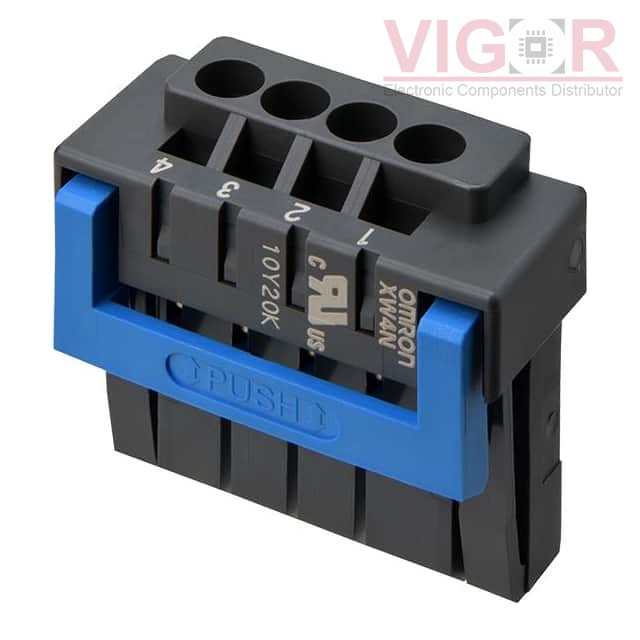

XW4N-04D1-S

XW4N-04D1-S

Image is for reference,
please contact us to get the real picture

Part No :

XW4N-04D1-S

Manufacturer
Omron Electronics Components
Description
SOCKET,SINGLE-ROW,,TIN REFLOW,
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
XW4N-04D1-S PDF
Availability
0 pieces
Unit Price
$9.94000

Current price of XW4N-04D1-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XW4N-04D1-S Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:Plug, Female Sockets
Number of Positions:4
Positions Per Level:4
Number of Levels:1
Pitch:0.138" (3.50mm)
Header Orientation:-
Plug Wire Entry:180°
Termination Style:Screwless - Leg Spring, Push-In Spring
Mounting Type:Free Hanging (In-Line)
Current - IEC:8A
Voltage - IEC:160 A
Current - UL:8 V
Voltage - UL:300 V
Wire Gauge or Range - AWG:16-24 AWG
Wire Gauge or Range - mm²:0.2-1.5mm²
Color:Black
Operating Temperature:-40°C ~ 100°C
Contact Mating Finish:Tin
Features:Lever Actuated
