1089660000

1089660000

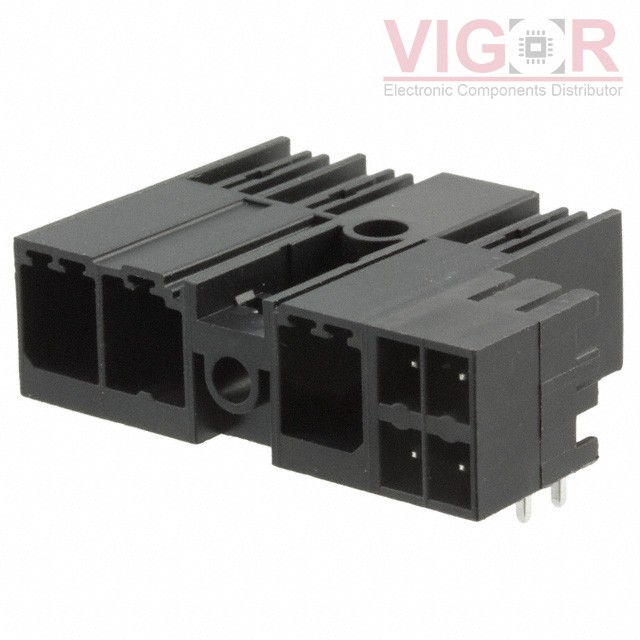

Image is for reference,
please contact us to get the real picture

Part No :

1089660000

Manufacturer
Weidmuller
Description
TERM BLOCK HDR 7POS 90DEG 7.62MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
1089660000 PDF
Availability
0 pieces
Unit Price
$6.31208

Current price of 1089660000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1089660000 Specifications
Type Description
Series:Omnimate SV
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:7
Positions Per Level:7 (3 Power + 4 Signal)
Number of Levels:Hybrid
Pitch:0.300" (7.62mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:41A
Voltage - IEC:1 kV
Current - UL:35 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Black
Operating Temperature:-50°C ~ 130°C
Contact Mating Finish:Tin
Features:Latch Holder
