1580920000

1580920000

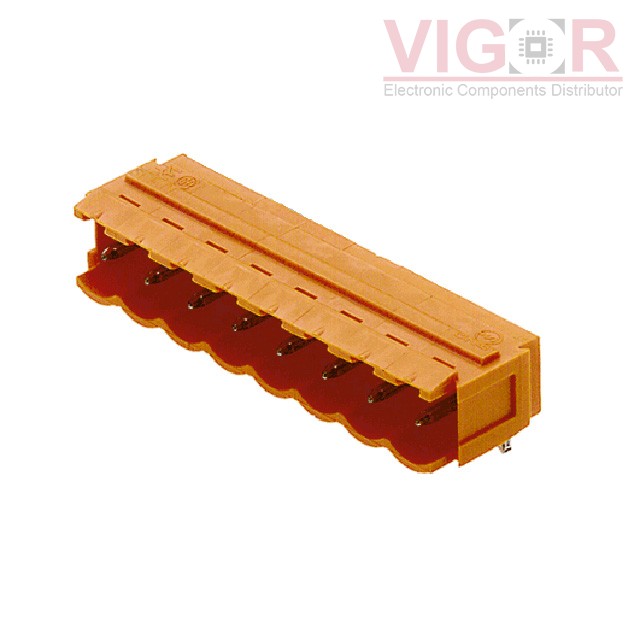

Image is for reference,
please contact us to get the real picture

Part No :

1580920000

Manufacturer
Weidmuller
Description
TERM BLOCK HDR 8POS 90DEG 5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
1580920000 PDF
Availability
0 pieces
Unit Price
$2.01200

Current price of 1580920000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1580920000 Specifications
Type Description
Series:Omnimate SL
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:8
Positions Per Level:8
Number of Levels:1
Pitch:0.197" (5.00mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:18A
Voltage - IEC:400 V
Current - UL:15 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Orange
Operating Temperature:-50°C ~ 100°C
Contact Mating Finish:Tin
Features:-
