XW4N-12D2-S

XW4N-12D2-S

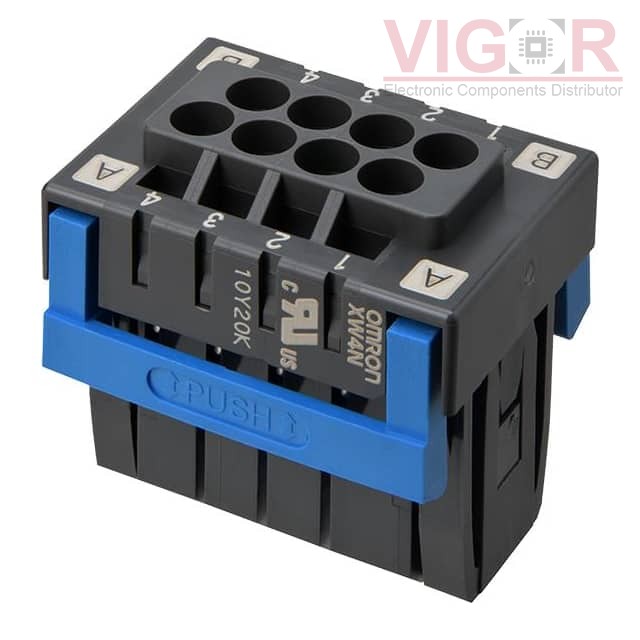

Image is for reference,
please contact us to get the real picture

Part No :

XW4N-12D2-S

Manufacturer
Omron Electronics Components
Description
SOCKET,DOUBLE-ROW,,GOLD,
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
XW4N-12D2-S PDF
Availability
0 pieces
Unit Price
$16.47000

Current price of XW4N-12D2-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XW4N-12D2-S Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:Plug, Female Sockets
Number of Positions:12
Positions Per Level:6
Number of Levels:2
Pitch:0.138" (3.50mm)
Header Orientation:-
Plug Wire Entry:180°
Termination Style:Screwless - Leg Spring, Push-In Spring
Mounting Type:Free Hanging (In-Line)
Current - IEC:8A
Voltage - IEC:160 A
Current - UL:8 V
Voltage - UL:300 V
Wire Gauge or Range - AWG:16-24 AWG
Wire Gauge or Range - mm²:0.2-1.5mm²
Color:Black
Operating Temperature:-40°C ~ 100°C
Contact Mating Finish:Tin
Features:Lever Actuated
