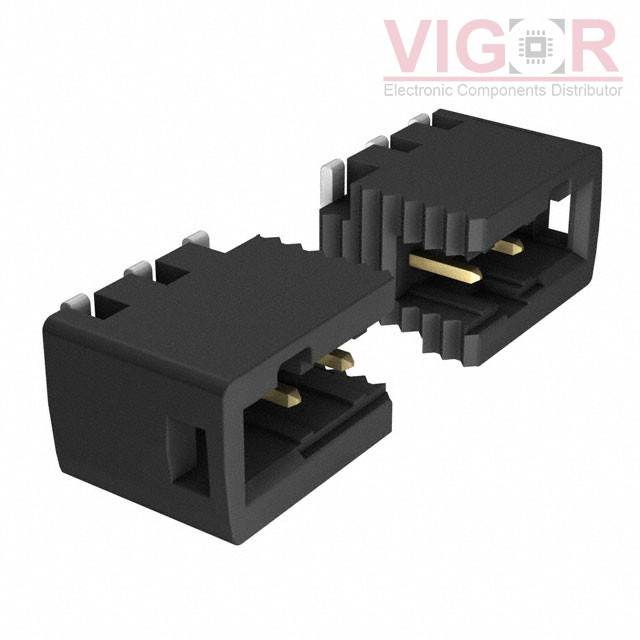

XW4K-10A1-H1

XW4K-10A1-H1

Image is for reference,
please contact us to get the real picture

Part No :

XW4K-10A1-H1

Manufacturer
Omron Electronics Components
Description
TERM BLOCK HDR 10POS 2.54MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
XW4K-10A1-H1 PDF
Availability
0 pieces
Unit Price
$3.24300

Current price of XW4K-10A1-H1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XW4K-10A1-H1 Specifications
Type Description
Series:XW4
Package:Tape & Reel (TR)
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:10
Positions Per Level:10
Number of Levels:1
Pitch:0.100" (2.54mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Surface Mount
Current - IEC:-
Voltage - IEC:-
Current - UL:6 A
Voltage - UL:160 V
Wire Gauge or Range - AWG:20-26 AWG
Wire Gauge or Range - mm²:0.14 ~ 0.5mm²
Color:Black
Operating Temperature:-45°C ~ 125°C
Contact Mating Finish:Tin
Features:Board Guide, Latches
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1720576

1720576

TERM BLOCK HDR 2POS VERT 7.62MM
HOT 1779870000

1779870000

TERM BLOCK PLUG 10POS STR 3.5MM

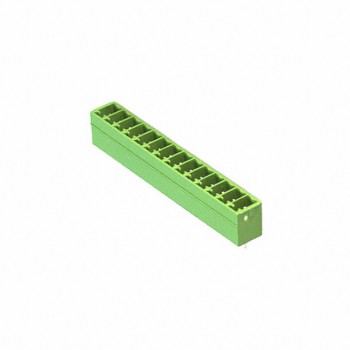

HOT 1803549
