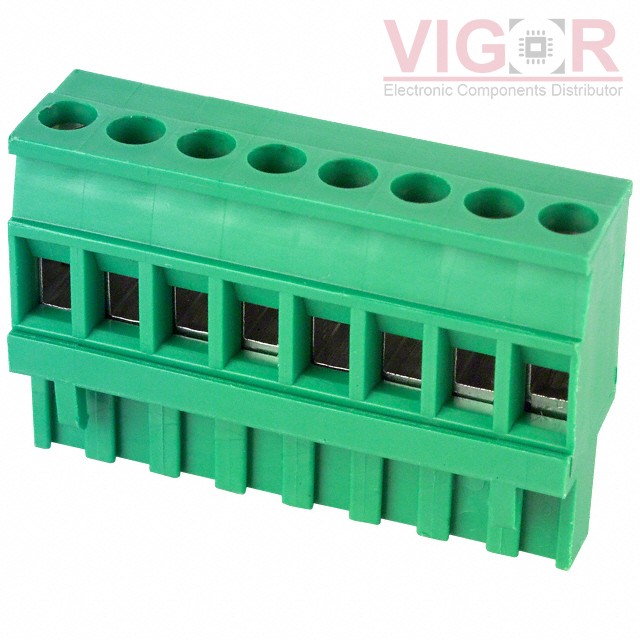

ED1100/8

Image is for reference,
please contact us to get the real picture

Part No :: ED1100/8

Manufacturer: On-Shore Technology, Inc.

Description: TERM BLOCK PLUG 8POS 90DEG 5MM

Catalog: Terminal Blocks - Headers, Plugs and Sockets

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: ED1100/8 PDF

Availability: 23 pieces

Unit Price: ~~$7.84000~~

Current price of ED1100/8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ED1100/8 Specifications

Type	Description
Series:	ED1100
Package:	Bulk
Part Status:	Active
Type:	Plug, Female Sockets
Number of Positions:	8
Positions Per Level:	8
Number of Levels:	1
Pitch:	0.197" (5.00mm)
Header Orientation:	-
Plug Wire Entry:	90°
Termination Style:	Screw
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	15 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	10-22 AWG
Wire Gauge or Range - mm²:	2.5mm²
Color:	Green
Operating Temperature:	-30°C ~ 105°C
Contact Mating Finish:	-
Features:	Retention Latches (Wire Side)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

691373500021B

TERM BLOCK PLUG 21POS STR 5.08MM

HOT

1894082

TERM BLOCK PLUG 5POS STR 5.08MM

HOT

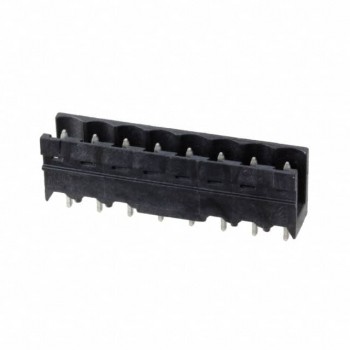

1838040000
