1728360000

1728360000

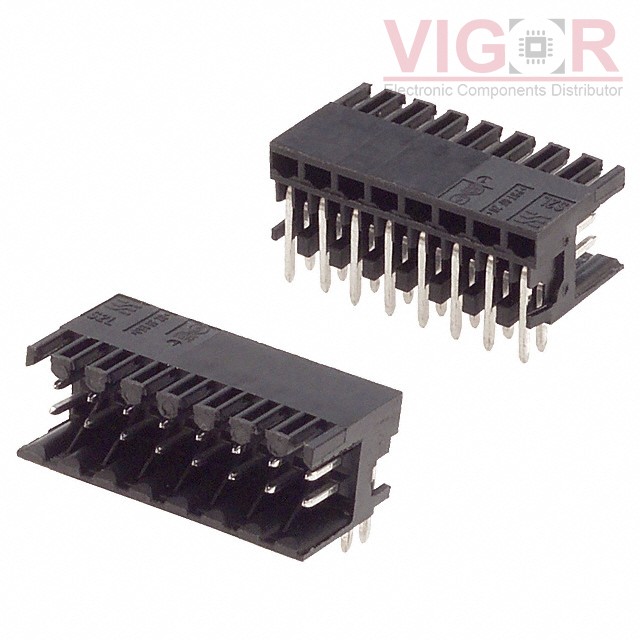

Image is for reference,
please contact us to get the real picture

Part No :

1728360000

Manufacturer
Weidmuller
Description
TERM BLOCK HDR 16POS 90DEG 3.5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
1728360000 PDF
Availability
0 pieces
Unit Price
$5.11620

Current price of 1728360000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1728360000 Specifications
Type Description
Series:Omnimate S2L
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (2 Side)
Number of Positions:16
Positions Per Level:8
Number of Levels:2
Pitch:0.138" (3.50mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:7.5A
Voltage - IEC:100 V
Current - UL:10 A
Voltage - UL:150 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Black
Operating Temperature:-20°C ~ 100°C
Contact Mating Finish:Tin
Features:-
