796642-5

796642-5

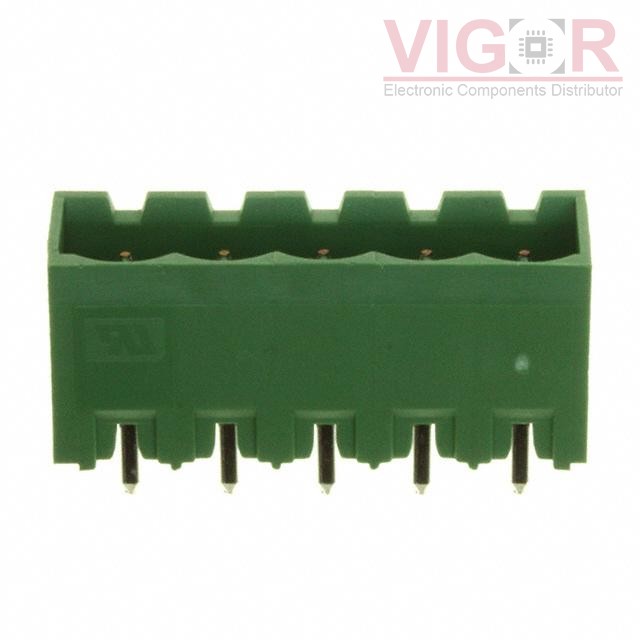

Image is for reference,
please contact us to get the real picture

Part No :

796642-5

Manufacturer
TE Connectivity AMP Connectors
Description
TERM BLOCK HDR 5POS VERT 5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
796642-5 PDF
Availability
717 pieces
Unit Price
$2.07000

Current price of 796642-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

796642-5 Specifications
Type Description
Series:Buchanan
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:5
Positions Per Level:5
Number of Levels:1
Pitch:0.197" (5.00mm)
Header Orientation:Vertical
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:-
Voltage - IEC:-
Current - UL:15 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Green
Operating Temperature:-40°C ~ 110°C
Contact Mating Finish:Tin
Features:-
