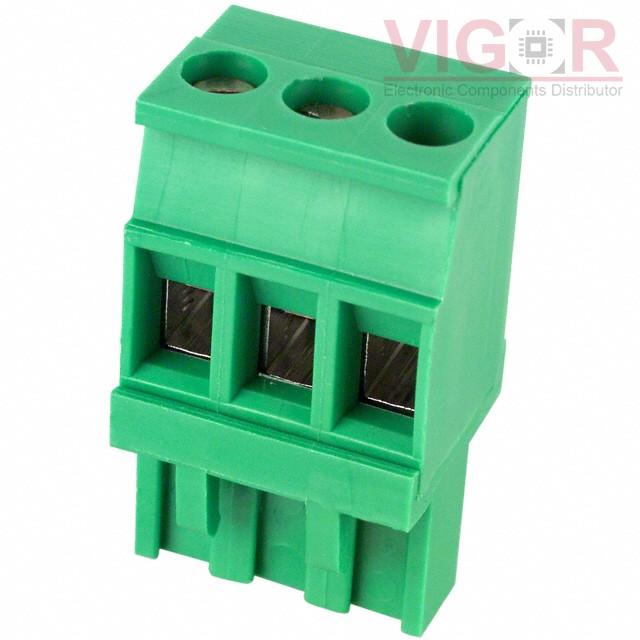

ED1100/3

Image is for reference,
please contact us to get the real picture

Part No :: ED1100/3

Manufacturer: On-Shore Technology, Inc.

Description: TERM BLOCK PLUG 3POS 90DEG 5MM

Catalog: Terminal Blocks - Headers, Plugs and Sockets

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: ED1100/3 PDF

Availability: 0 pieces

Unit Price: ~~$3.28000~~

Current price of ED1100/3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ED1100/3 Specifications

Type	Description
Series:	ED1100
Package:	Bulk
Part Status:	Active
Type:	Plug, Female Sockets
Number of Positions:	3
Positions Per Level:	3
Number of Levels:	1
Pitch:	0.197" (5.00mm)
Header Orientation:	-
Plug Wire Entry:	90°
Termination Style:	Screw
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	15 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	10-22 AWG
Wire Gauge or Range - mm²:	2.5mm²
Color:	Green
Operating Temperature:	-30°C ~ 105°C
Contact Mating Finish:	-
Features:	Retention Latches (Wire Side)
