D01-9843201

D01-9843201

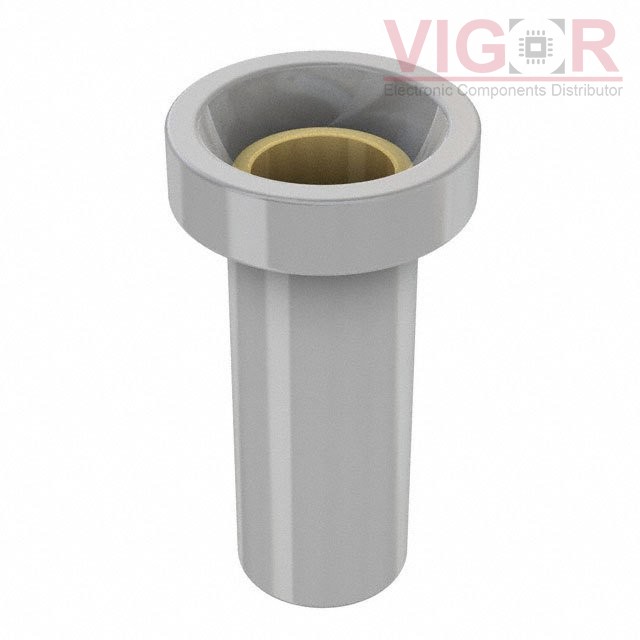

Image is for reference,
please contact us to get the real picture

Part No :

D01-9843201

Manufacturer
Harwin
Description
CONN PIN RCPT .016-.020 SOLDER
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 18 - May 22 2024
DataSheet
D01-9843201 PDF
Availability
0 pieces
Unit Price
$5.35610

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of D01-9843201 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

D01-9843201 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Tail Type:No Tail
Termination:Solder
Length - Overall:0.142" (3.61mm)
Accepts Pin Diameter:0.016" ~ 0.020" (0.41mm ~ 0.51mm)
Accepts Square Pin Size:-
Pin Hole Diameter:0.043" (1.09mm)
Mounting Hole Diameter:0.039" ~ 0.043" (0.99mm ~ 1.09mm)
Flange Diameter:0.057" (1.45mm)
Tail Diameter:-
Socket Depth:0.124" (3.15mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:3.94µin (0.10µm)
