S9141-45R

S9141-45R

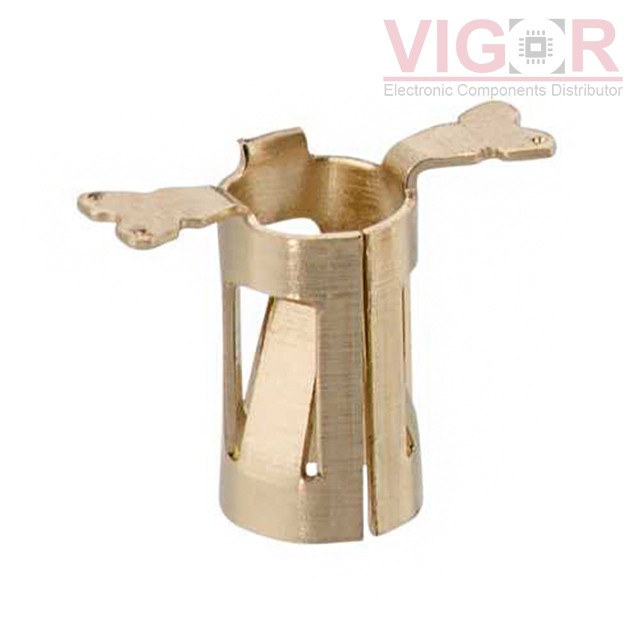

Image is for reference,
please contact us to get the real picture

Part No :

S9141-45R

Manufacturer
Harwin
Description
CONN PIN RCPT .031-.051 SOLDER
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
S9141-45R PDF
Availability
5285 pieces
Unit Price
$0.47000

Current price of S9141-45R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S9141-45R Specifications
Type Description
Series:SYCAMORE
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Tail Type:No Tail
Termination:Surface Mount - Bottom Entry
Length - Overall:0.160" (4.06mm)
Accepts Pin Diameter:0.031" ~ 0.051" (0.80mm ~ 1.30mm)
Accepts Square Pin Size:-
Pin Hole Diameter:0.079" (2.00mm)
Mounting Hole Diameter:0.102" (2.59mm)
Flange Diameter:-
Tail Diameter:-
Socket Depth:0.101" (2.56mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:3.94µin (0.10µm)
