5645945-1

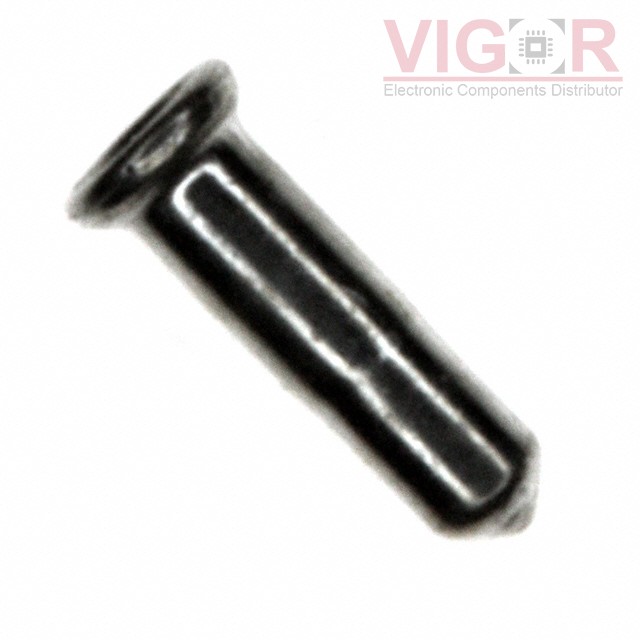

Image is for reference,
please contact us to get the real picture

Part No :: 5645945-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN PIN RCPT .015-.021 SOLDER

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: 5645945-1 PDF

Availability: 0 pieces

Unit Price: ~~$0.28721~~

Current price of 5645945-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5645945-1 Specifications

Type	Description
Series:	1
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Solder
Length - Overall:	0.158" (4.01mm)
Accepts Pin Diameter:	0.015" ~ 0.021" (0.38mm ~ 0.53mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	-
Mounting Hole Diameter:	0.043" ~ 0.046" (1.09mm ~ 1.17mm)
Flange Diameter:	0.066" (1.68mm)
Tail Diameter:	-
Socket Depth:	0.090" ~ 0.145" (2.29mm ~ 3.68mm)
Contact Material:	Beryllium Copper
Contact Finish:	Tin
Contact Finish Thickness:	100.0µin (2.54µm)
