H3490-01

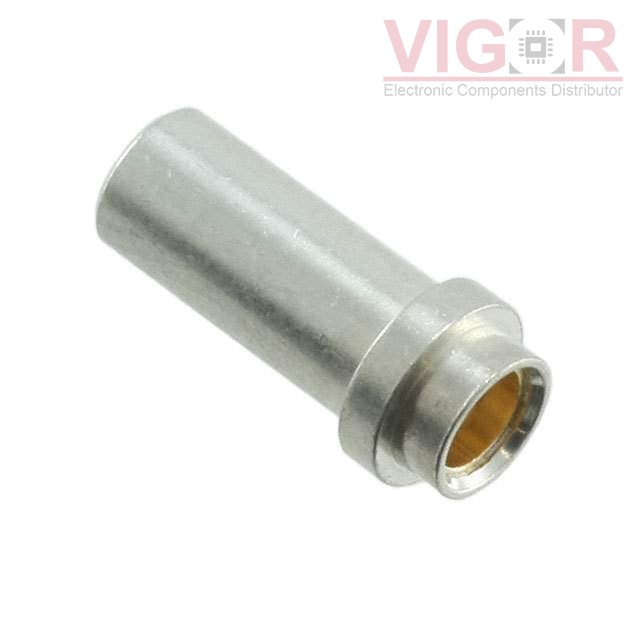

Image is for reference,
please contact us to get the real picture

Part No :: H3490-01

Manufacturer: Harwin

Description: CONN PIN RCPT .079 SOLDER

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: H3490-01 PDF

Availability: 1407 pieces

Unit Price: ~~$1.28000~~

Current price of H3490-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H3490-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Solder
Length - Overall:	0.417" (10.59mm)
Accepts Pin Diameter:	0.079" ~ 0.091" (2.00mm ~ 2.30mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	-
Mounting Hole Diameter:	0.144" ~ 0.148" (3.66mm ~ 3.77mm)
Flange Diameter:	0.187" (4.75mm)
Tail Diameter:	-
Socket Depth:	0.161" (4.09mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
